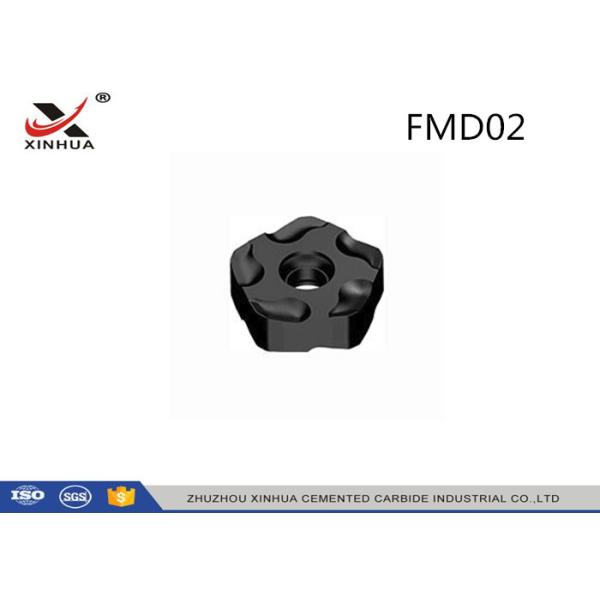

Pentagon Whirlwind Carbide Milling Inserts 10 Cutting Edges FMD02 YBM253 Grade

Pentagon Whirlwind FMD02 Carbide Milling Inserts with 10 Cutting Edges Milling Cutter Series

Description:

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on 45steel, cast iron, nonferrous materials, plastics and other tough-to-machine materials.

• Solid carbide tools offer long tool life and faster cutting speeds than other substrates, but are more brittle and must be used with rigid toolholding systems
• Multi Layer coating TiC/Al2O3/TiN
• Good toughness, high strength in use and versatility for roughing, medium roughing of steel, alloy steel and cast-iron, especially for high speed and quick cutting
• Use for slotting and slab or straddle milling

1. 100% virgin raw material of powder for each insert to ensure you top and stable quality.

2. High technical production line to ensure delivery on time.

3. More than10,000 sets of of molds with various of types, sizes, chipbreakers and coating for customer to choice to meet customers requirements. Also we accept special design to open new mould according to customers drawings and samples.

4. Different packages :different color /brand/size of inner plastic box and outside wooden box .

5. 24 hours on line for sales and after sales service and in time technology supports.

Application:

1. New generation of milling cutter for face miling mainly in automotive industry.

2. Open chipbreaker and large rake angle design, suitable for machines of different power.

3. Wipper insert guarantees stable good surgace quality at different feed rates.

4. The high precision insert pocket design, ensures high accuracy insert positioning and stong clamping of inserts for a stable machining process.

5. The Pentagon insert with 10 cutting edges and offers outstanding machining economy.

In addition to normal milling operations, there are certain applications that are particularly damaging to carbide. Here are some of the most difficult jobs that demand a lot of strength from the shape of the insert:

• Milling of castings, where the axial depth often varies throughout the cut,
• Workpieces with hard spots or inclusions that cause unpredictable insert life,
• Raw materials that are flame or plasma cut, leaving very hard surfaces to machine,
• Forgings or castings with slag or scale on the surface that can result in the notching of the insert,
• Hardened steels, tool steels and cast irons, and
• Heat resistant materials like Inconel, titanium and Hastelloy.

Specification:

cnc machine tools inserts

woodworking carbide inserts

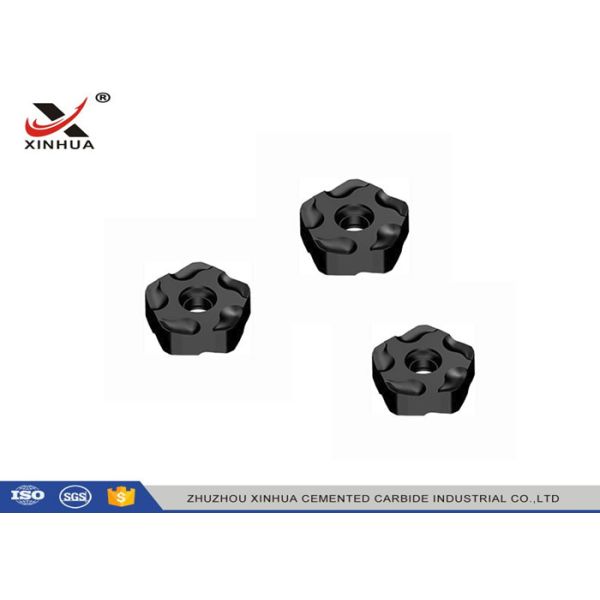

Pentagon Whirlwind Carbide Milling Inserts 10 Cutting Edges FMD02 YBM253 Grade Images
